Product Indications

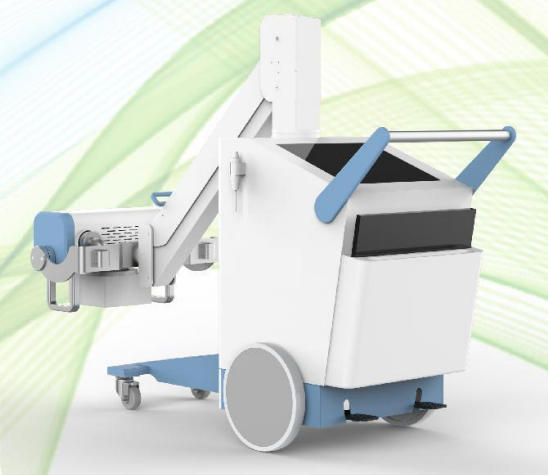

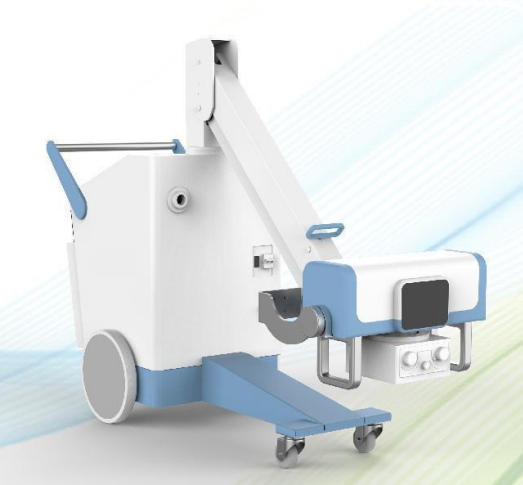

High-Power Design, High Performance and Long BatteryLife.Outstanding Performance, Excellent Images, Flexible Configuration, Green and Safe. The operation is simple and the movement is flexible.The adjustable columnallows the system to be moved to any position for a clear view of the road.The largetouch screen with full English handwriting input provides a new interactiveexperience and superb work efficiency.The outstanding operational performanceflexible rotating and retractable arm, wide imaging area, and the ability of the balltube to rotate around the column over a wide range provide unobstructed imaging.

Parameters

I. Flat Panel Detector

1. Detector Type: TFT full-panel amorphous silicon flat panel detector
2. Detector Panel Size: 430 mm x 430 mm
3. Effective Imaging Size: 17 × 17 inches
4. Detector Pixel Matrix: 3072 × 3072
5. Detector Pixel Pitch: 146 μm
6. Detector Spatial Resolution: 3.4 LP/MM
7. Pixel Grayscale: 16-bit
8. Image Acquisition and Transmission Time: 3 seconds

II. High-Frequency High-Voltage Generator

1. Maximum Output Power: 32 kW
2. Input Power: 220VAC Single Phase
3. Output Voltage: 40–150 kV
4. Tube Current Range: 10–320 mA
5. Exposure Time Range: 1 ms–10000 ms
6. mAs Range: 0.1 mAs–250 mAs
7. Supports AEC and APR automatic exposure ;
8. Fault self-diagnosis and display;

III. X-ray tube assembly

1. Focal point design: 0.6mm/1.2mm
2. Nominal power: 21kW/46kW (50Hz);
3. Maximum kV: 150kV
4. Anode target angle: 12°

IV. Column

1. Column rotation angle: ±90°, error ±2°.
2. Vertical movement of the X-ray tube assembly focal point: 1259cm, error ±2cm.
3. Horizontal rotation angle of the X-ray tube and collimator is greater than ±90°, error ±2cm.

Product Features

High-Power Design, High Performance and Long BatteryLife.Outstanding Performance, Excellent Images, Flexible Configuration, Green and Safe. The operation is simple and the movement is flexible.
