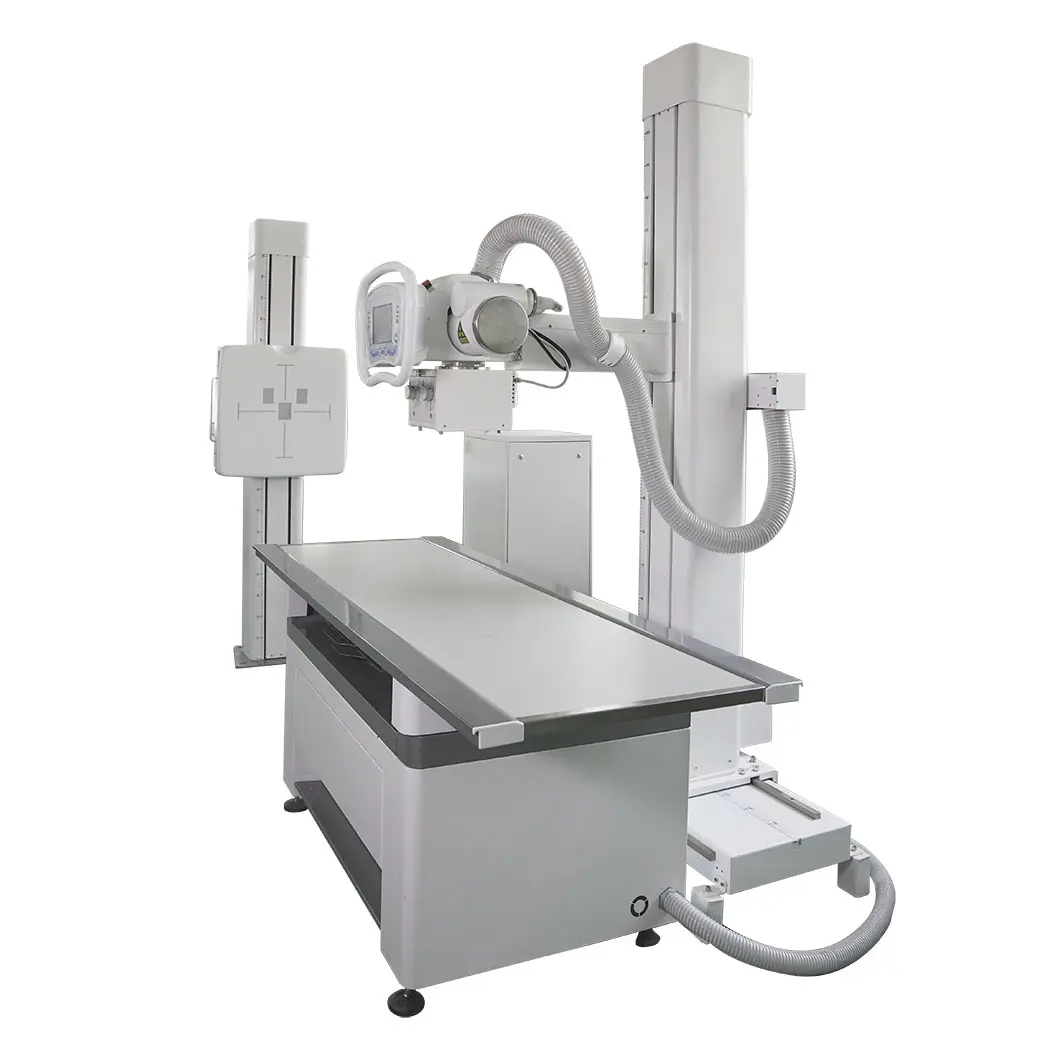

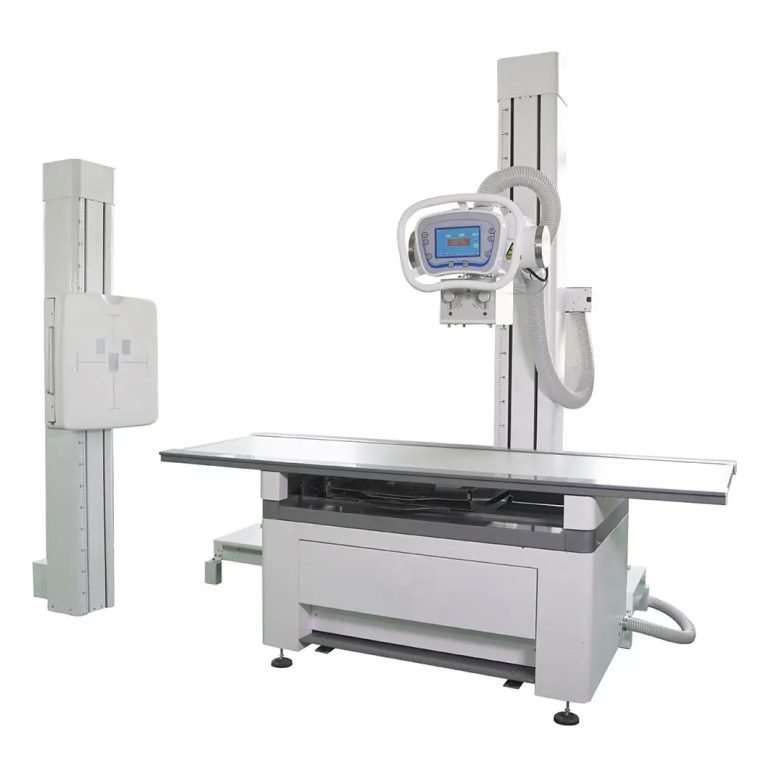

High Power X-ray Machine Digital Integration Conventional 50/65kw Medical Xray System Radiology Equipment
All-electric movement. automatic bulb tube tracking and positioning LCD screen for convenient operation and intelligent application experience.
| Technical Specifications | |
| High frequency and high voltage generating device | |
| Power | 50kW |
| High voltage inverter frequency | 50kHz |
| Photography | kV: 40~150kV mA range: 10~500mA |
| Exposure time | 1ms~10s mAs: 0.1mAs~630mAs |
| Power condition | three-phase 380VAC |
| X-ray tube assembly | |
| Focus design | 0.6mm／1.2mm |
| Focus power | 30/50kW |
| Anode heat capacity | 190kHU |
| Beam limiter | |
| Dimensions | 250mm×224mm×250mm |
| Radiation field | maximum when SID=56cm: 43cm×43cm |
| minimum: 0cm×0cm | |
| Manipulation mode | manual |
| Frame | |
| Column height | 2230mm |
| Column left and right movement stroke | 1500mm |
| Move up and down | 1400mm |
| Ball tube rotation range | ﹣90°～0°～+90° |

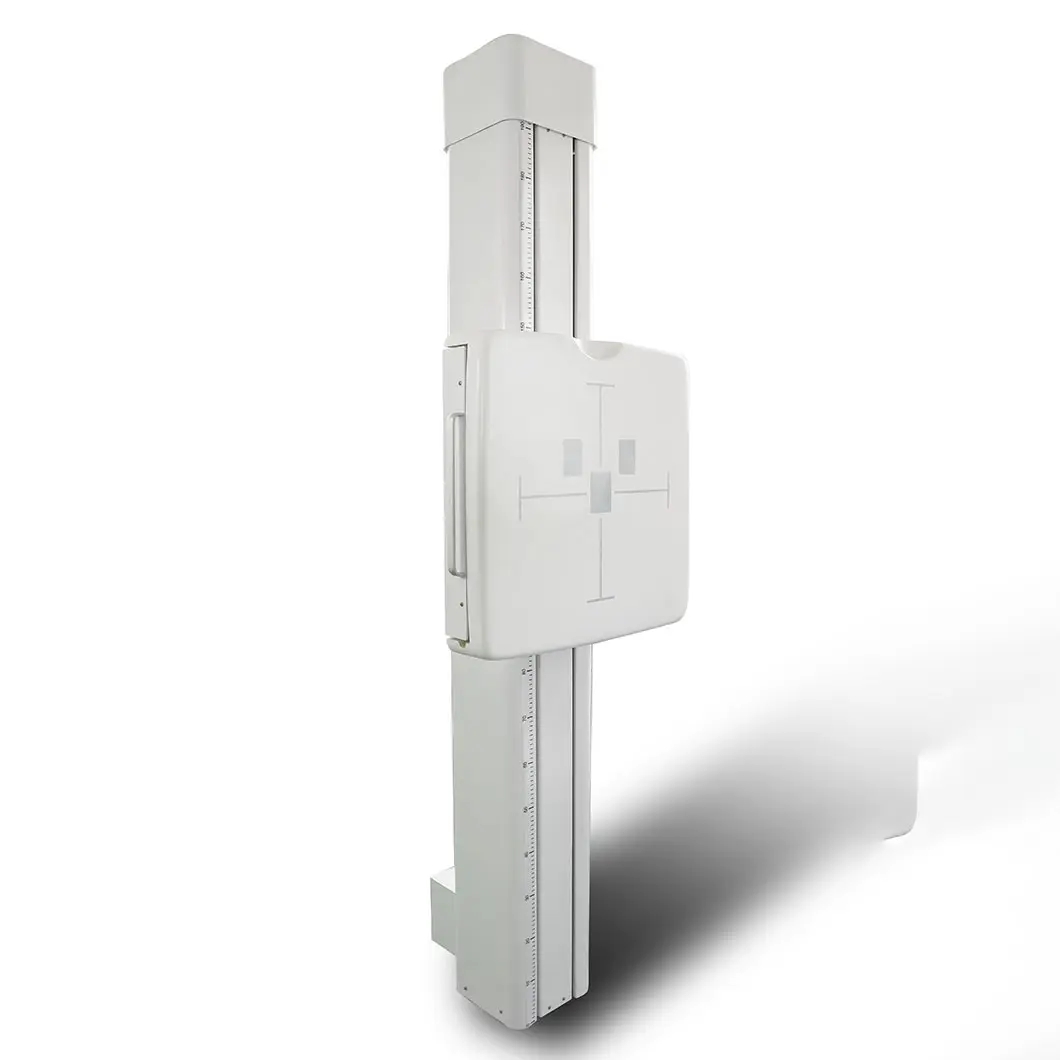

| Chest frame height | 2100mm |
| Lifting stroke | 1400mm |
| Mobile photography bed | |
| Bed size | length 2000mm, width 730mm, height 680mm |
| The bed board moves forward and backward | 200mm |
All-electric movement. automatic bulb tube tracking and positioning LCD screen for convenient operation and intelligent application experience.
Delivery within 3-15 days after receipt of payment, delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. For more details, leave us a message via Whatsapp, or Mail.
