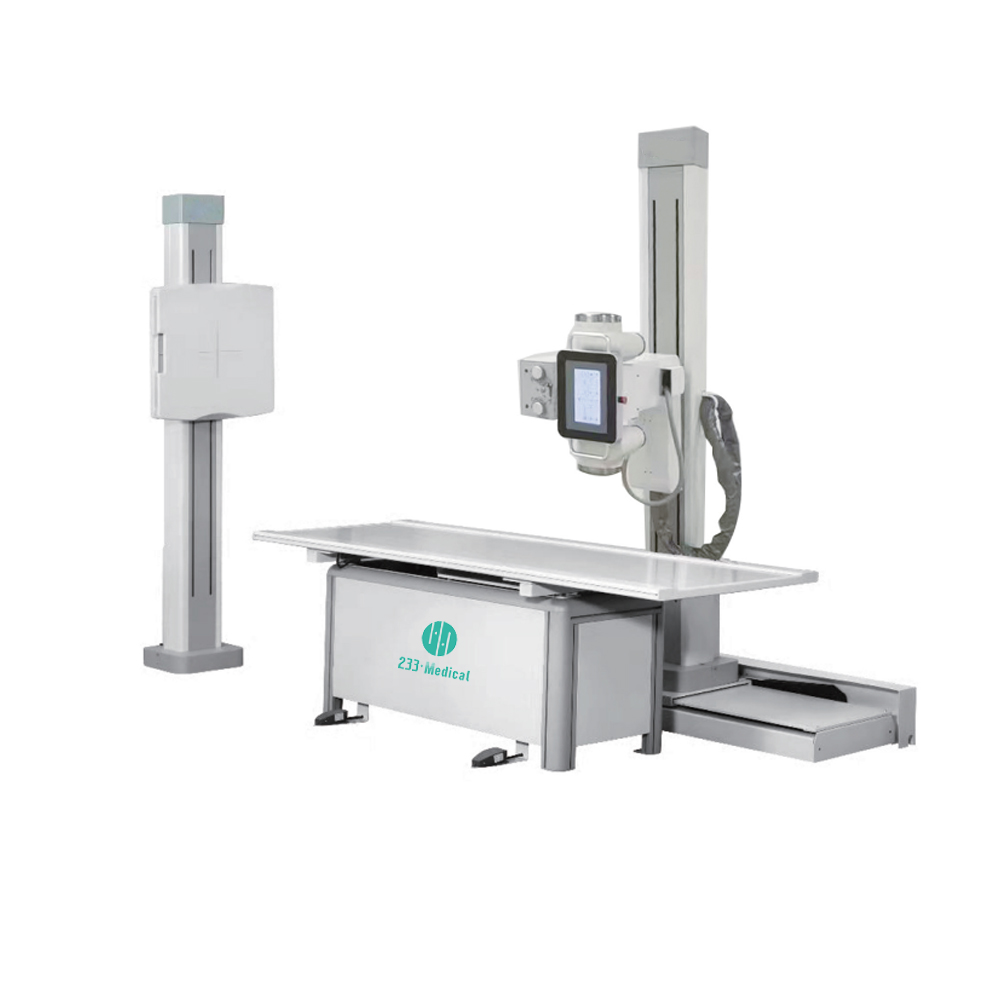

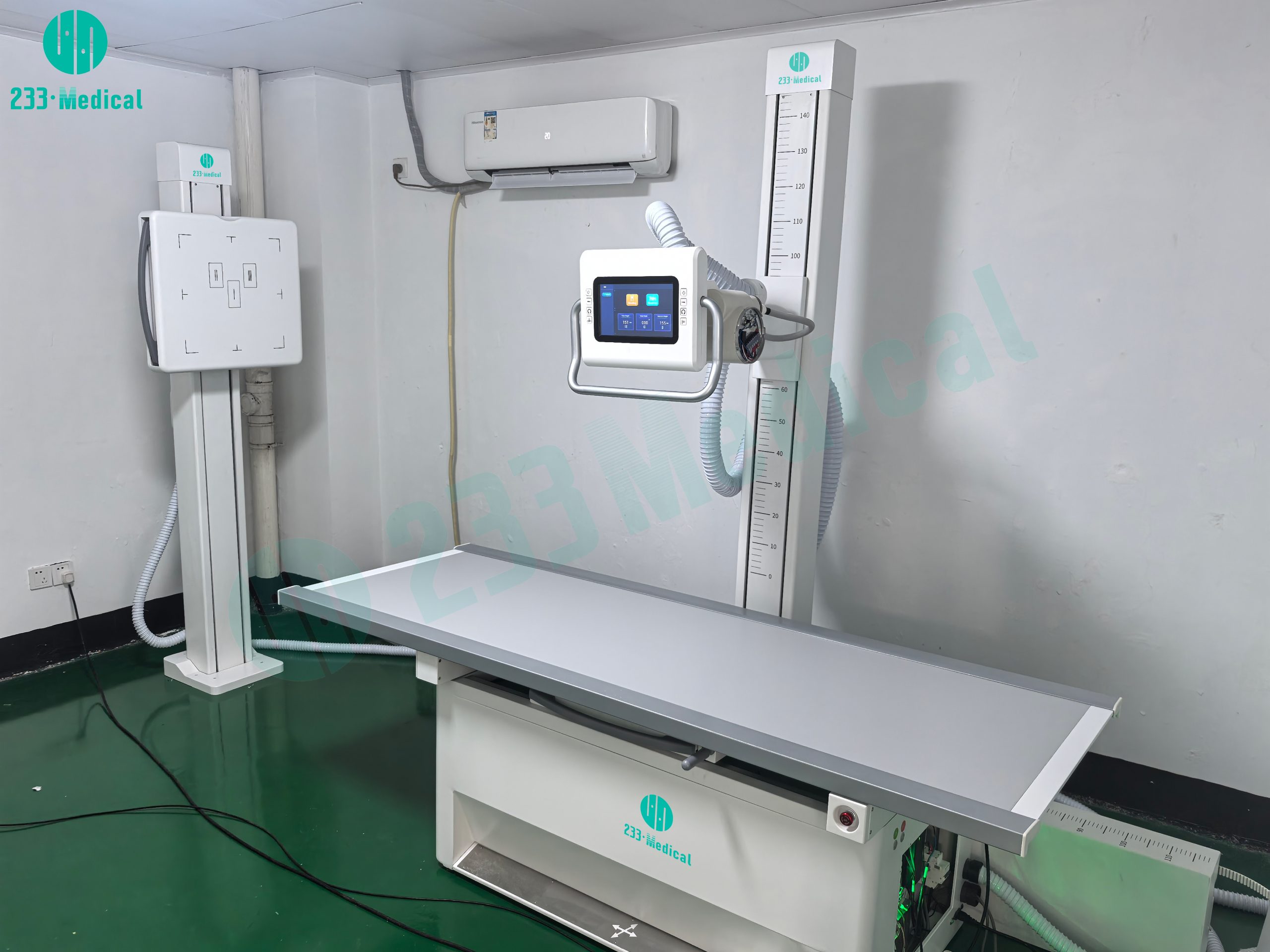

Flat Table Digjtal X-ray Radiography System adopts ralrack dual-column structure.ts smart design, exible movement,easy operation and high working eficient providemoare imaging posions
Flat Table Digjtal X-ray Radiography System adopts ralrack dual-column structure.ts smart design, exible movement,easy operation and high working eficient providemoare imaging posions. tis a highr-end digtal radiography device with wide range of appications, which could perform routne imaging ofhuman head, chest,abdomen,lumbar vertebraand limbs with PA. LAT and clinostatism in hospitals at all levels.
| Technical Specifications | |
| High frequency and high voltage generating device | |
| Power | 50kW |
| High voltage inverter frequency | ≧30KHZ |
| Photography | kV: 40~150kV mA range: 10~630mA |
| Exposure time | 2ms～6300ms |
| Power condition | three-phase 380VAC |
| X-ray tube assembly | |
| Focus design | 0.6mm／1.2mm |
| Focus power | 20/50kW |
| Anode heat capacity | 230kHU |
| Beam limiter | |
| Power | 24VAC |
| Radiation field | maximum when SID=56cm: 43cm×43cm |
| minimum: 0cm×0cm | |
| Manipulation mode | manual |
| Frame | |
| Tube assembly rotation angle | ±90°, locking at any angle |
| Bed height | 650mm |
| Bed panel longitudinal movement range | ≥800mm |
| Bed surface dimensions | 2000mm × 790mm |
| X-ray tube column lateral movement range | ≥1500mm |
| X-ray tube lifting movement range | ≥1000mm |
| Mobile photography bed | |
| Bed panel lateral movement range | ≥200mm |
| Bed load capacity | 150kg |
1.Sophisticated technology, better heat dissipation, suitable for long-term clinicalexamination, long life
2.High frequency generator with high X-ray inverse frequency, large power and good X-ray quality
3.Intelligence high voltage control system with various APR
4.New generation a-Si Csl flat panel detector with high conversion rate achieves digital image acquisition with low dose
5.High standard digital image processing system provides more post-processing and meets clinical needs.
Delivery within 3-15 days after receipt of payment, delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. For more details, leave us a message via Whatsapp, or Mail.
