Flat panel detectors are core components that directly convert X-ray energy into digital images, and are widely used in medical imaging, industrial non-destructive testing, security inspection, scientific research, and other fields.
Flat panel detectors are core components that directly convert X-ray energy into digital images, and are widely used in medical imaging, industrial non-destructive testing, security inspection, scientific research, and other fields. Based on their imaging principles, flat panel detectors are mainly divided into two categories: direct conversion type and indirect conversion type.

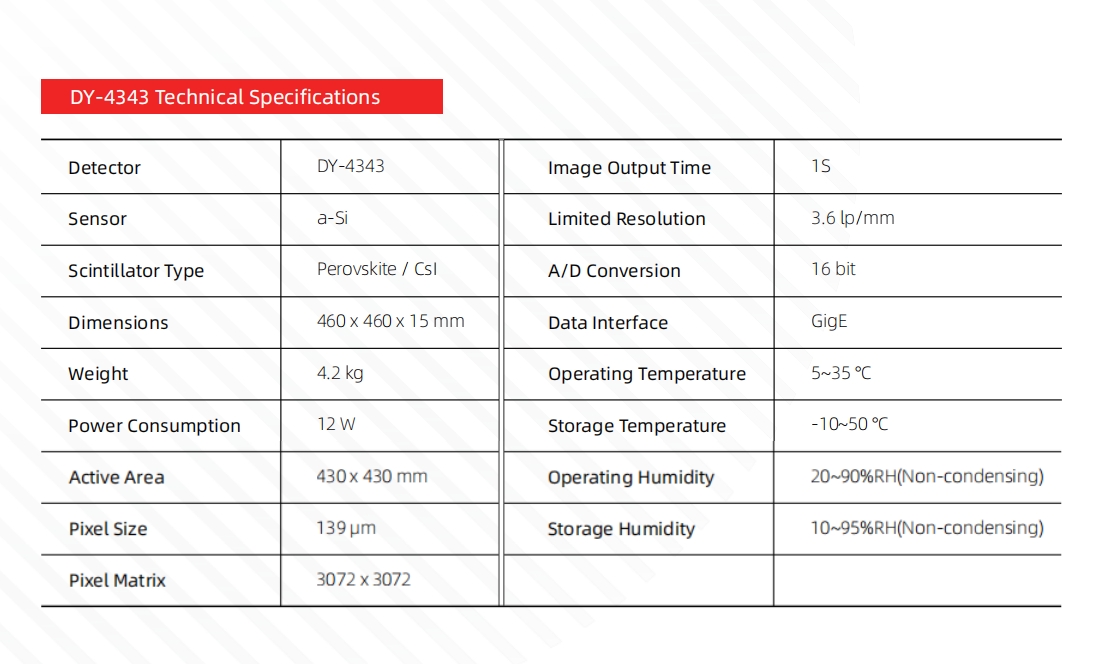

| Detector | ESS-4343 | lmage Output Time | 1S |
| Sensor | a-Si | Limited Resolution | 3.6 lp/mm |
| Scintillator Type | Perovskite /Csl | A/D Conversion | 16 bit |

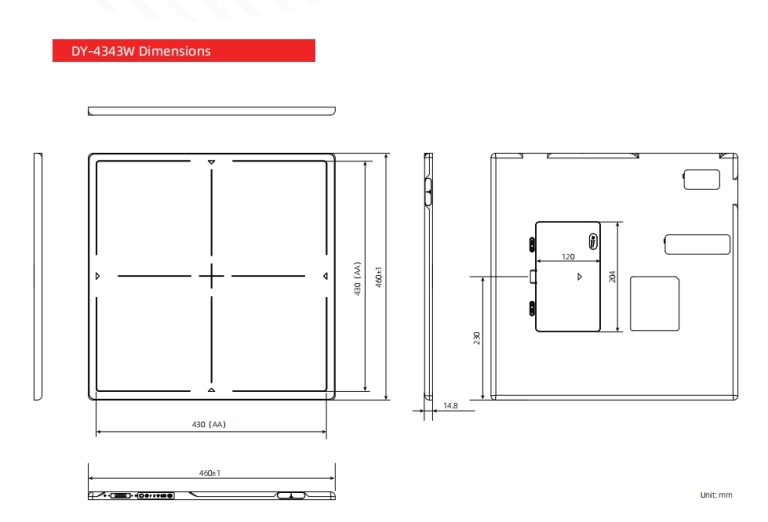

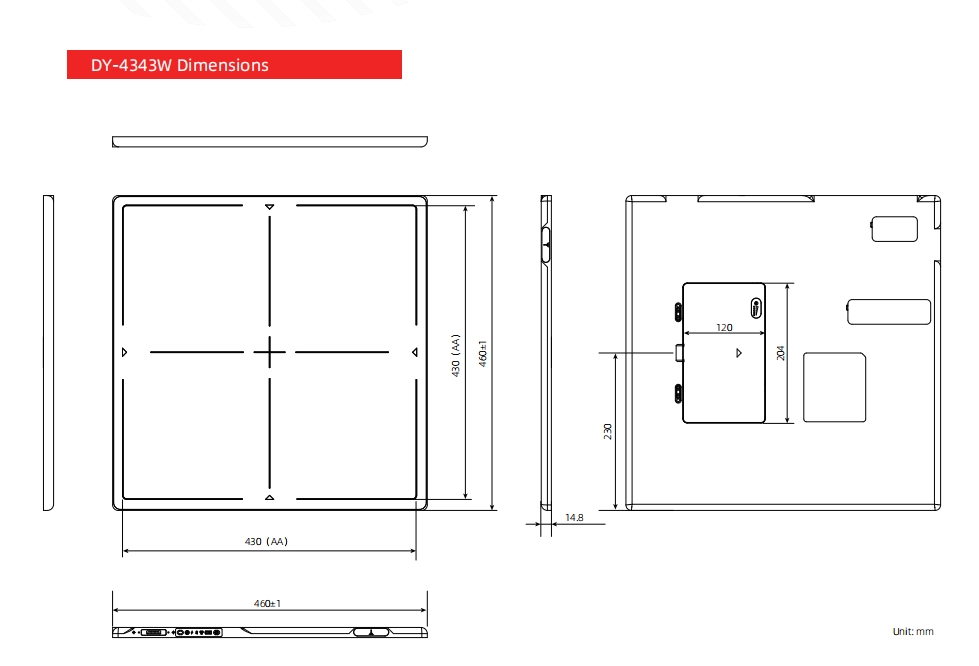

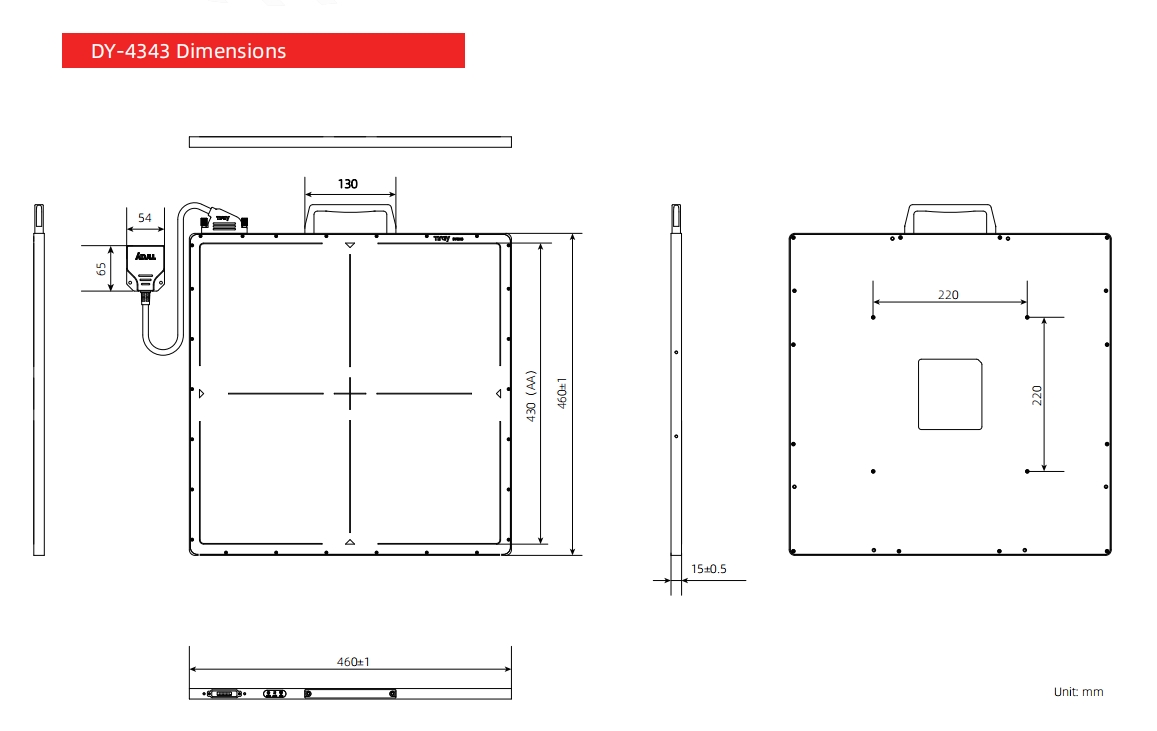

| Dimensions | 460x460x15 mm | Data Interface | GigE |
| Weight | 4.2 kg | Operating Temperature | 5~35 ℃ |
| Power consumption | 12 W | Storage Temperature | -10~50℃ |
| Active Area | 430x 430 mm | Operating Humidity | 20~90%RH(Non-condensing) |
| Pixel Size | 139 μm | Storage Humidity | 10~95%RH(Non-condensing) |
| Pixel Matrix | 3072 x3072 |
Delivery within 3-15 days after receipt of payment, delivery may be a little later for large or customized products, but not much later.
Yes, the sample freight needs to be paid by the customer.
Most of our products are available for OEM & ODM with your logo and design. For more details, leave us a message via Whatsapp, or Mail.
