Comprehensive Guide to Ultrasound Examination: Types, Characteristics, and Applications
Ultrasound examination, a cornerstone of modern medical imaging, offers non-invasive, radiation-free, real-time, and cost-effective diagnostics. It utilizes high-frequency sound waves (>20,000 Hz) that reflect/scatter at tissue interfaces to generate computer-processed images. Below is a systematic overview of ultrasound types, technical features, and clinical applications:
I. Major Ultrasound Types & Technical Features
B-mode Ultrasound (Brightness-mode, 2D Grayscale)
Principle: Converts echo intensity into grayscale pixels to form 2D anatomical cross-sections.
Features: Most widely used; foundation for other techniques. Visualizes organ morphology, internal echoes (cystic/solid/mixed), and pathologies (stones, tumors, effusions).
Applications: Abdomen (liver/gallbladder/pancreas/kidneys), urology (bladder), gynecology (uterus/ovaries), obstetrics (fetal monitoring), superficial organs (thyroid/breast/testes), cardiac structures.

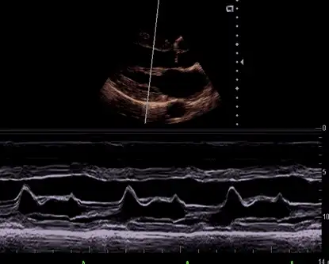

M-mode Ultrasound (Motion-mode)
Principle: Plots tissue movement over time along a single scan line.
Features: High temporal resolution for quantifying motion velocity/amplitude.
Applications: Cardiac evaluation (valve motion, wall thickness, systolic/diastolic function).
Doppler Ultrasound
Subtypes:

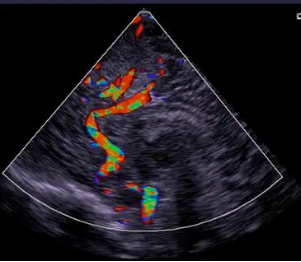

Color Doppler Flow Imaging (CDFI): Overlays blood flow direction/speed (red/blue) on B-mode images.
Spectral Doppler: Measures quantitative flow velocity (PW for localized flow; CW for high-velocity jets).
Power Doppler: Detects low-velocity flow (tumor angiogenesis, placental perfusion).
Applications: Cardiovascular (valvular disease, shunts), vascular (thrombosis/stenosis), organ perfusion.

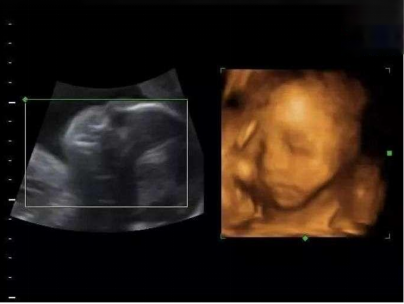

3D/4D Ultrasound
Principle: Reconstructs 2D slices into 3D volumes; 4D adds real-time motion.
Features: Visualizes complex anatomy/spatial relationships.
Applications: Fetal anomaly screening (cleft lip/spina bifida), uterine abnormalities, cardiac defects.
II. Common Clinical Examinations
| Examination | Techniques Used | Key Preparations |
| Abdominal Ultrasound | B-mode | Fasting (8–12 hrs) |
| Echocardiography | B-mode + M-mode + Doppler | None |
| Gynecological Ultrasound | B-mode ± Doppler (transvaginal) | Full bladder (transabdominal) |
| Vascular Ultrasound | CDFI + Spectral Doppler | None |
| Superficial Organ Scan | High-frequency B-mode | None |
| Interventional Ultrasound | Real-time B-mode guidance | Pre-procedure assessment |
III. Critical Features & Precautions
Safety: No radiation risk—safe for all ages (including pregnant women/infants).
"Color Ultrasound" ≠ Colored Images: Refers to Doppler capability; B-mode remains grayscale.
Preparation Protocols:
Fasting: Essential for abdominal exams to reduce gas interference.
Full Bladder: Required for pelvic/early-pregnancy scans (displaces bowel).
Empty Bladder: Needed for transvaginal/transrectal scans.
IV. Technological Advancements
Elastography: Assesses tissue stiffness (liver fibrosis/cancer hardness).
Contrast-Enhanced Ultrasound (CEUS): Uses microbubbles to evaluate perfusion.
Fusion Imaging: Combines ultrasound with CT/MRI for precision guidance.
V. Conclusion
Ultrasound remains an indispensable "green imaging" modality, evolving through innovations like elastography and CEUS while maintaining core advantages: safety, accessibility, and real-time capability. Understanding its types and protocols ensures optimal diagnostic outcomes.
