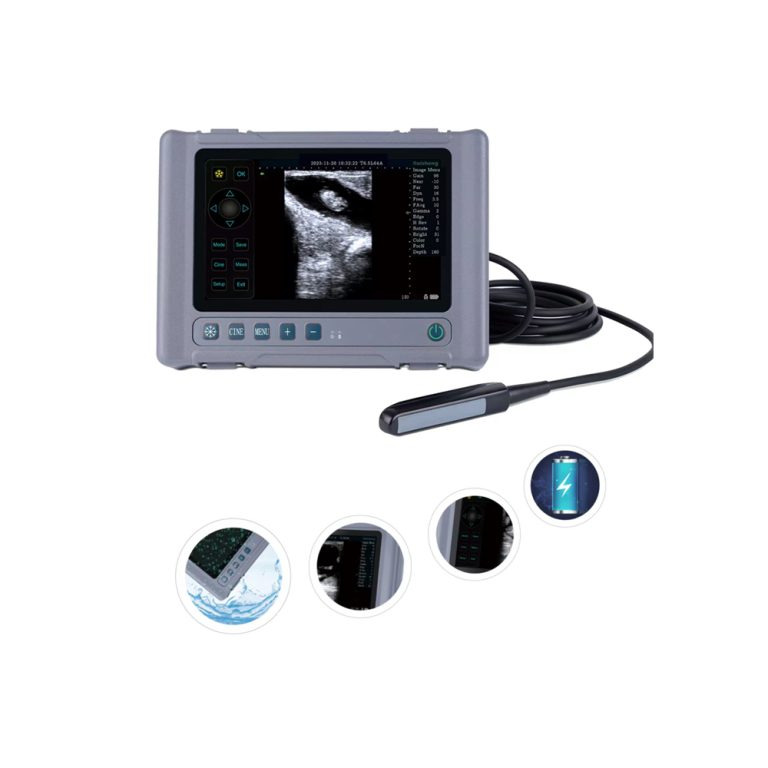

Portable Veterinary Handheld Ultrasound

Detection of pregnancy, number of foetuses, foetal development
Obstetric disease detection, detecting uterine diseases, changesin ovarian follicles and corpus luteum, cysts, pyometra, fibroidsand other diseases

Test

.pdf

DOWNLOAD
share

Product Introduction

Detection of pregnancy, number of foetuses, foetal development
Obstetric disease detection, detecting uterine diseases, changesin ovarian follicles and corpus luteum, cysts, pyometra, fibroidsand other diseases
Detect the gestational age and expected date of delivery,distance, circumference, area, heart rate of cattle, horses,donkeys, sheep, pigs, dogs, cats, camels and other animals
One-click measurement of back fat, eye muscle area, lean meatpercentage, etc.

Parameters

Host materialMetal
Screen size8 inch
Available LanguagesChinese,English,Spanish,Russian,French,
Portuguese
Support Probes3.5MHz electronic convex array probe,6.5MHz micro
convex probe,7.5MHz high frequency line array probe,
6.5MHz veterinary rectal line array probe,4.0MHz
veterinary rectal convex array probe,3.5MHz backfat
probe,6.5Mhz sheep specific probe with handle
Display ModeB,B+B,4B,B+M,M;
Measurement FunctionsRoutine measurements,backfat measurements,cardiac
measurements,obstetric measurements
Backfat measurementmodeAutomatic backfat function (Smart one-touch
measurement),fast backfat function (moving reading
scale),manual backfat measurement function

Product Features

  1. The whole machine is fully waterproof and can be washed and cleaned with water
  2. Optional video glasses provide excellent viewing experience
  3. Ultra-high-definition 8-inch large LCD medical chinese touch display, dual internal and external screens,explosion-proof and scratch-proof
  4. Full-viewing lPS high-resolution screen, capable of observing the measured target from multiple angles10000 mAh battery, can work continuously for 8 hours
  5. One-click smart screen rotation, images and touch buttons can be flipped, making it easy for both left andright hands to operate
  6. Using metal plate radiator, excellent heat dissipation function
  7. Automatic backfat measurement function (intelligent one-button measurement)
  8. Supports a variety of electronic probes. Each probe has five-stage frequency conversion function. Theprobe does not have a conversion box, making it more convenient to use.
